Product Introduction

The CONTEC ECG100G is a lightweight, single-channel ECG solution that provides reliable 12-lead ECG waveform recording for clinics, physician offices, and mobile healthcare environments. This compact digital ECG machine uses thermal printing technology, allowing ECGs to be printed directly on site without an external printer. Automatic or manual operation modes can be selected depending on the examination needs, and a built-in rechargeable battery supports use in locations with limited power.

The device processes all standard 12-lead resting ECGs using digital signal processing technology, effectively eliminating baseline drift, power interference, and muscle artifacts. Each printed waveform comes with automatic annotations, including lead identification, sensitivity settings, paper feed speed, and activation filter status, providing cardiologists and general practitioners with complete contextual information as well as the waveform itself.

Functions:

1. Digital signal processing with power‑frequency, baseline, and muscle‑filters ensures clear and reliable ECG waveforms.

2. A high‑resolution thermal printer (8 dots/mm) works without any adjustment and supports a recording bandwidth up to 150 Hz.

3. It continuously records real‑time ECG traces and annotations (lead marks, sensitivity, paper speed, filter status) with high clarity.

4. In AUTO mode, one‑button operation completes the whole recording process, greatly improving workflow efficiency.

5. The interface and reports are available in multiple languages: Chinese, English, French, Italian, German, Spanish, and Turkish.

6. Under optimal DC power, it stands by for up to 7 hours, prints continuously for up to 4 hours, and can store up to 150 ECG recordings.

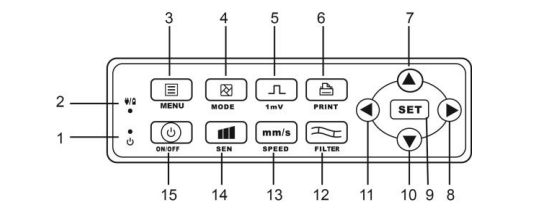

Buttons

1. Startup indicator It lights in green after turning on the device.

2. Power status indicator Green indicates that the AC power supply is used. At this time, there is no battery in the device or the battery is full. Other colors indicate that the battery is being charged.

3. MENU Menu button

4. MODE When the device in sampling interface, use MODE button to select the print mode.

5. 1mV Calibration button

6. PRINT Print the sampled ECG waveform or end the printing.

7. Direction button Up button

8. Direction button Right button

9. SET System menu and confirm

Safety

• Ensure the device is placed on a flat work surface. Avoid violent vibration or impact when moving the device.
• When using AC power, the power cord must be a three-core cable. The frequency and voltage of the AC power supply must match the markings in the instruction manual, and the capacity must be sufficient. If the provided three-core power cord is unusable, please use the built-in DC power supply or replace it with a standard-compliant three-core power cord.
• Before replacing the fuse or performing cleaning and disinfection, turn off the device and unplug the power cord. Do not rub the screen with sharp objects.
• Do not allow the device to come into contact with water. Do not use or store the device in environments with high atmospheric pressure, high humidity, temperatures exceeding standard values, poor ventilation, or excessive dust.
