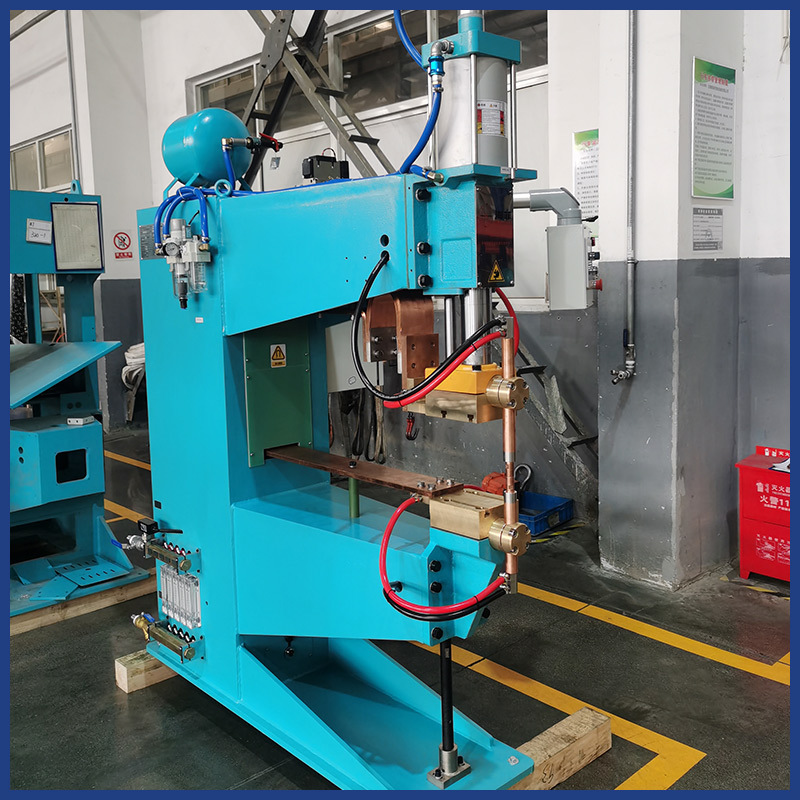

HFDB-100 Medium Frequency Inverter Spot Welding Machine
Product Overview
The HFDB-100 Medium Frequency Inverter Spot Welding Machine is
engineered for resistance spot welding applications demanding
stable current control, repeatable weld quality, and reliable
production performance. Utilizing a medium-frequency inverter
welding system, it delivers precisely controlled welding energy for
each spot weld, making it ideal for manufacturers working with
metal sheet assemblies and components where consistent weld points
are critical to product integrity.
Haifei provides customized configurations including welding
systems, electrodes, fixtures, and control functions tailored to
your specific workpiece and production requirements.
Why Choose Medium-Frequency Inverter Spot Welding?
While resistance spot welding appears straightforward, production
variations in current, electrode contact, material positioning, or
welding time can significantly impact weld quality.
Medium-frequency inverter systems offer superior control compared
to conventional low-frequency AC welding systems, addressing common
production challenges:
- Reduced variation between individual weld points
- Enhanced stability in welding conditions
- Minimized spatter and electrode wear
- Consistent weld nugget formation
- Maintainable repeatable production parameters
Key Features & Benefits
Medium-Frequency Inverter Technology: Advanced inverter architecture provides stable welding energy with
adjustable parameters for diverse workpieces, ideal for facilities
managing multiple welding products.
Precise Parameter Control: Configurable welding current, time, electrode pressure, and
material settings enable optimized conditions for different
materials and component structures.
Stable Electrode Contact: Customizable welding heads and electrode tooling maintain proper
contact during welding cycles, reducing variations from poor
alignment or inconsistent positioning.
Custom Welding Fixtures: Dedicated fixtures designed for your specific workpiece ensure
proper part positioning, weld-point accessibility, electrode
clearance, and repeatability.
Automation Ready: Configurable for standalone operation or integration into
customized welding systems with options for automatic loading,
multi-point welding, robot handling, PLC communication, and
production data collection.
Typical Applications
- Automotive Components: Brackets, reinforcement parts, sheet-metal assemblies, structural
components, and stamped metal parts
- Sheet Metal Fabrication: Components requiring multiple spot welds for assembling
overlapping metal parts
- Electrical Enclosures: Metal enclosure components, brackets, covers, and fabricated parts
- Appliance Components: Sheet-metal components for household appliances and related
equipment
- Industrial Hardware: General industrial components where mechanical fastening is
unsuitable or multiple welded joints are required
Configuration Selection Guide
For optimal machine configuration, provide the following
information:
- Material Type: Specify material type and grade (mild steel, stainless steel,
galvanized steel, aluminum)
- Thickness: Provide thickness of each layer to be welded
- Weld Point Layout: Number and position of weld points for electrode arrangement and
fixture design
- Weld Strength Requirements: Mechanical strength needs to determine welding process window
- Production Volume: Daily output and target cycle time for manual, semi-automatic, or
automated configuration
- Product Drawings: 2D drawings or 3D models for electrode access, fixture
positioning, and welding sequence evaluation
Frequently Asked Questions
What is the HFDB-100 used for?
The HFDB-100 is a medium-frequency inverter spot welding machine
designed for resistance welding of metal components and sheet-metal
assemblies requiring consistent, high-quality spot welds.
What materials can it weld?
Common applications include steel and other conductive sheet
materials. Specific material compatibility depends on configuration
and should be evaluated based on material type, thickness, and
joint structure.
Is the HFDB-100 suitable for multiple weld points?
Yes. Custom fixtures can be designed to position workpieces and
provide access to multiple welding locations efficiently.
Can the machine be automated?
Yes. The HFDB-100 can be configured for manual, semi-automatic, or
fully integrated production systems based on your output
requirements and product structure.
How do I determine if the HFDB-100 suits my product?
Provide product drawings or samples along with material
specifications, thickness, weld-point layout, strength
requirements, and production targets for comprehensive evaluation.
Can Haifei provide welding fixtures?
Yes. Dedicated fixtures are developed according to your workpiece
geometry, welding points, loading method, and automation
requirements.
