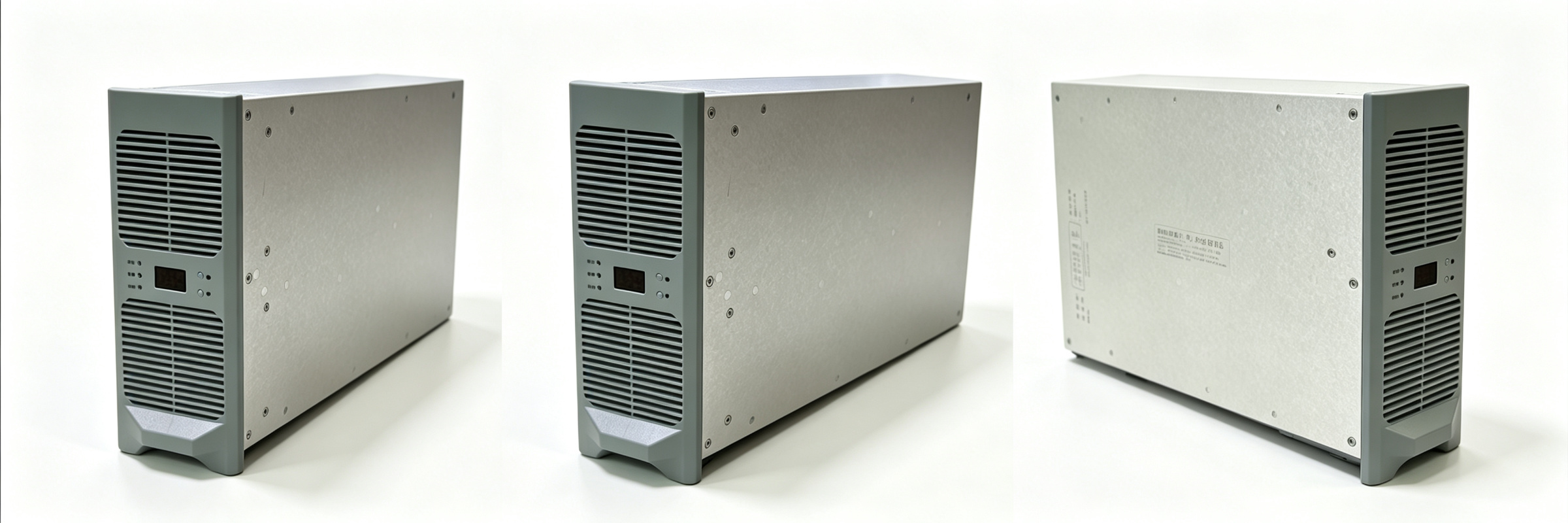

TH230D30NZ-6 220V DC Rectifier Module 30A

The TH230D30NZ-6 is a 6.9kW high-frequency switching rectifier module engineered for 220V/230V DC power systems. It accepts a wide three-phase input of 323–456VAC and delivers a precisely regulated output of 176–300VDC at 30A, making it ideal for substations, power plants, and industrial control systems. Built on full-digital control, it features RS-485 and CAN bus communication, N+1 hot-swappable redundancy, and peak efficiency ≥93%, ensuring stable 24/7 DC power with seamless integration into existing monitoring networks.

Product Parameters

Product Advantages

- High power density – 220V high-voltage output with 30A current capacity in a compact hot-swappable module.
- Clean power quality – Power factor ≥0.98, THD ≤5% at full load, ripple ≤0.5%, protecting sensitive downstream loads.
- Precision full-digital control – Voltage accuracy ≤±0.5%, current accuracy ≤±1% for stable float/boost charging.
- Dual communication – RS-485 and CAN bus support for flexible integration into automated DC power management systems.
- Scalable & serviceable – N+1 hot-swap redundancy with full "four-remote" monitoring (telemetry, telesignaling, telecontrol, teleadjustment).
- Comprehensive protection – Dual HW/SW overvoltage, short-circuit foldback with auto-recovery, current limiting and over-temperature protection.
- Field-proven reliability – CE certified; TONHE has completed 290+ projects for 220kV–500kV substations with over 40% domestic market share and 1 million modules produced annually.

FAQ

Q1: What input power supply does the TH230D30NZ-6 require?
It requires a three-phase 380VAC supply (operating range 323–456VAC, 45–55Hz). Single-phase input versions are not supported by this model.

Q2: Can multiple modules run in parallel?
Yes. Modules can be paralleled with current sharing imbalance ≤±3%, supporting N+1 or N+M redundant configurations for seamless capacity expansion.

Q3: How does the module communicate with the monitoring system?
It supports both RS-485 (Modbus protocol) and CAN bus interfaces, allowing easy integration with your existing DC screen monitoring unit.

Q4: Is the module hot-swappable? What about maintenance?
Yes, it is fully hot-swappable. A faulty module can be replaced online without powering down the system, and protection (short-circuit auto-recovery, OVP, OTP) minimizes maintenance downtime.

Q5: What certifications and after-sales support do you provide?
The module is CE certified. We provide a 12-month warranty, factory-direct technical support, sample orders for testing, and OEM/ODM customization on request.
