Precision Etched Ultra-Thin Vapor Chambers for Advanced Thermal Management in Compact Electronics

Precision Etched Ultra-Thin Vapor Chambers for Advanced Thermal Management in Compact Electronics

Vapor Chamber Overview

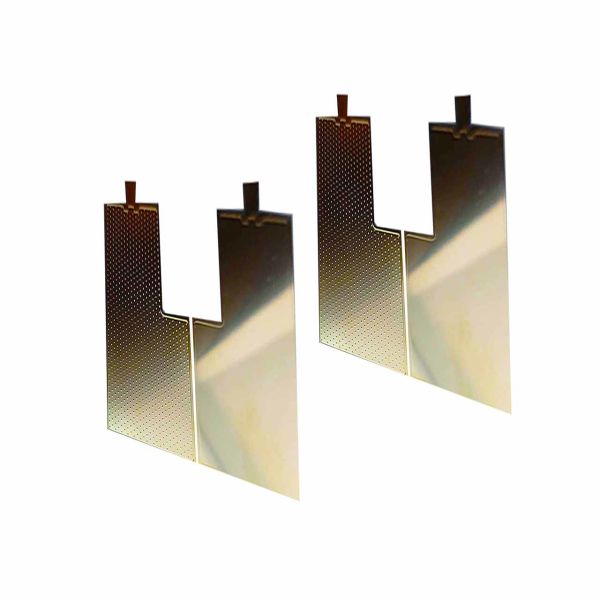

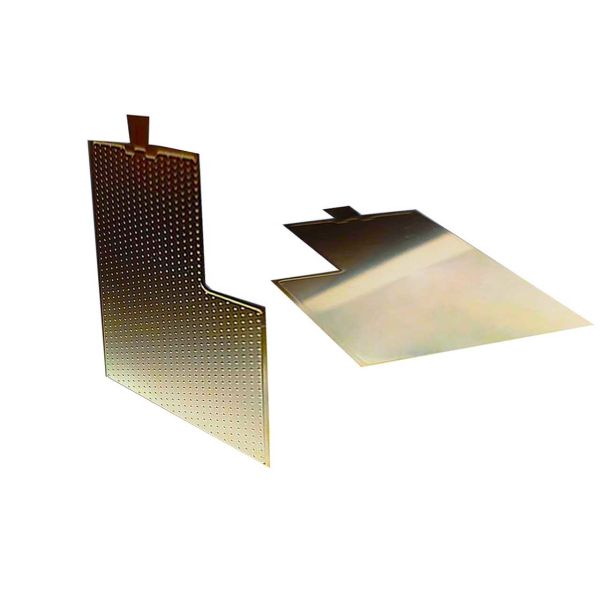

A Vapor Chamber is a flat-plate heat pipe that efficiently spreads heat from a small source to a larger surface area. We specialize in manufacturing the precision-etched metal plates and intricate wick structures that form the core of high-performance vapor chambers.

Manufacturing Process
Using advanced photochemical etching, we produce burr-free, stress-free vapor chamber components with complex internal wick patterns, essential for optimal capillary action and thermal performance.

Vapor Chamber Features

• Ultra-High Precision: Capable of creating micro-features and fine wick structures.

• Superior Flatness: Ensures perfect contact with heat sources like CPUs/GPUs.

• Extremely Thin Walls: Process materials as thin as 0.02mm for ultra-slim designs.

• Burr-Free & Stress-Free: Guarantees structural integrity and vacuum-tight seals.

• Custom Designs: Rapid production of custom wick patterns and geometries.

Vapor Chamber Specifications

Vapor Chamber Applications

• 5G Communications Equipment: To dissipate heat from powerful base station amplifiers and chipsets.

• Smartphones & Laptops: Managing thermal loads from processors in increasingly thin devices.

• High-Performance Computing (HPC): For efficient heat spreading in servers and data centers.

• Gaming Consoles: Preventing performance throttling during intensive gameplay.

• Aerospace Avionics: Ensuring reliability of electronic systems in extreme conditions.

Our Advantages

• Speed & Agility: Rapid response from procurement to production for any order size.

• High Precision Expertise: Proven capability to handle the most demanding tolerances.

• Versatile Material Processing: Expertise in etching various metals.

• Proven Quality: Renowned for reliability and high quality.

Why Choose Xinhaisen?
We combine precision engineering with manufacturing speed. Our etching expertise ensures the high-performance, reliable vapor chambers your advanced thermal solutions demand, getting you to market faster without compromising on quality.

Easy to order! Just contact us with your requirements.

For over 13 years Xinhaisen has pioneered developments in photochemical etching, achieving standards admired by the industry and appreciated by a global customer base from a wide range of high-tech engineering markets.

Since found in 2012, in affiliating with our customers we have pioneered many new production techniques and methodologies in order to better serve their needs. It is these techniques that have advanced our capabilities further, enabling us to take what was once considered art and turn it into a science.

Now, we became China's leading photochemical etching specialist, with also the capacity of offering stamping and laser-cutting service. Our products include etching bipolar plates for fuel cell, speaker grills,  micro meshes&filters, tea&coffee infusers, shims&gaskets, Optical encoderdisk&strip, EMI/RFI shielding, Leadframes, connectors&contacts, printingstencils&foils and metal crafts.

Quality and service is our mission, Xinhaisen is committed to pursuing the highest standards of environmental performance. Responsibility for sustainability resides with all employees. The company has achieved ISO 14001 and IS0 9001 and IATF 16949 and is committed to maintaining that standard. With a fast response, high quality, best service and fair price, we have gained high reputation from our customers all over the world.
