WAGO 787-734 Switched Mode Power Supply

Categories Precision Pressure Sensor
Type: 787-885
Nominal Mains Frequency Range: 47 … 63 Hz; 0 Hz
Warrany: 1 Year
Brand: WAGO
Certification: CE
Input Voltage Range: AC 85 … 264 V; DC 130 … 373 V
Color: Silver
Brand Name: WAGO
Model Number: 787-885
MOQ: 1PCS
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Delivery Time: 5-8 work days
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

WAGO 787-734 Switched Mode Power Supply

WAGO 787-734 Switched Mode Power Supply
Product Overview

The WAGO 787-734 is a high-performance switched-mode power supply designed for industrial applications, offering a stable 24 VDC output at 20 A (480 W) with precise voltage regulation. Engineered for reliability in control cabinets, it features natural convection cooling for horizontal mounting and tool-free termination via lever-actuated PCB terminal blocks.

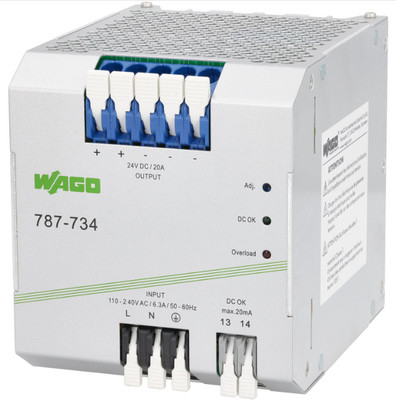

WAGO 787-734 power supply front view WAGO 787-734 power supply side view
Technical Specifications
AttributeValue
BrandWAGO
Type787-885
Warranty1 Year
ColorSilver
Input Voltage RangeAC 85 … 264 V; DC 130 … 373 V
Nominal Mains Frequency Range47 … 63 Hz; 0 Hz
Key Features
Output: 24 VDC (adjustable 22-28 V), 20 A, 480 W
Wide input range: 85-264 VAC or 130-373 VDC, 1-phase
High efficiency with power factor ≥0.94 (230 VAC) / ≥0.98 (115 VAC)
Precision control with deviation ≤1% and residual ripple ≤100 mV
Overload protection with constant power mode (1.15-1.4x nominal current)
Tool-free lever-actuated PCB terminal blocks for quick wiring
SELV (UL 60950-1) and PELV (EN 60204) compliant electrical isolation
DC OK contact for system monitoring via optocoupler
Performance Details
Input current:
≤ 3 A (230 VAC); ≤ 6.3 A (115 VAC)
Inrush current:
≤ 30 A
Power factor:
≥ 0.94 (230 VAC); ≥ 0.98 (115 VAC)
Mains hold-up:
≥20 ms at 230 VAC
WAGO 787-734 power supply technical diagram WAGO 787-734 power supply installation view
