| Categories | Precision Pressure Sensor |
|---|---|
| Brand Name: | dwyer |
| Model Number: | DPG-006 |
| MOQ: | 1PCS |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Accuracy: | DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C) |
| Highlight: | IP66 Digital Pressure Gauge, Digital Pressure Gauge Aluminum Housing, electronic pressure gauge Aluminum Housing |
| Enclosure Rating: | Designed To Meet NEMA 4/4X (IP66 |
| Wetted Materials: | Type 316L SS. |
| Certification: | CE |
| Power Requirements: | (2) AAA Alkaline Batteries, Included, User Replaceable |
| Pressure Limit: | 2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range |
| Company Info. |
| Xi'an Kacise Optronics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

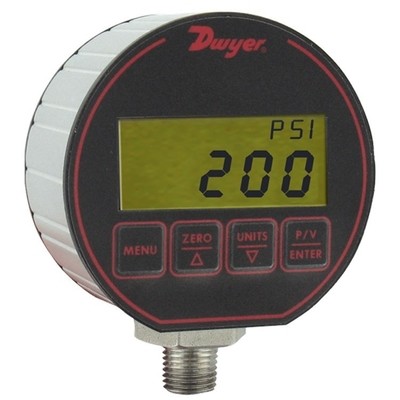

The Dwyer Series DPG Digital Pressure Gage is a high-accuracy measuring instrument designed to replace outdated analog gauges. With options for ±0.25% or ±0.5% full-scale accuracy, it features a 4-digit backlit display that eliminates parallax errors for precise readings. The rugged NEMA 4X (IP66) aluminum enclosure makes it ideal for industrial pressure monitoring in harsh environments.
| Parameter | Details |
|---|---|
| Accuracy | ±0.25% FS (DPG-100) / ±0.5% FS (DPG-000) |
| Pressure Range | -14.70 psi to 5000 psi (varies by model) |
| Display | 4-digit LCD, backlit, 0.425" H digits |
| Housing | Anodized aluminum, NEMA 4X (IP66) |
| Process Connection | 1/4" male NPT |
| Power Supply | 2x AAA alkaline batteries (included) |
| Battery Life | 2000 hours (typical) |
| Temperature Range | 0-130°F (-18-55°C) |
| Weight | 8.84 oz (275 g) |
| Wetted Materials | Type 316L SS |
| Accuracy | DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C) |
| Enclosure Rating | Designed To Meet NEMA 4/4X (IP66) |
| Pressure Limit | 2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range |
| Power Requirements | (2) AAA Alkaline Batteries, Included, User Replaceable |
|
