Cement production raw material mill circulating fan

Categories Cement Fan
Brand Name: SIMO BLOWER
Model Number: 5-10
Certification: CE/ISO9001/ISO45001
Place of Origin: CHINA
MOQ: 1
Price: $500-1000
Payment Terms: L/C, T/T, D/P
Supply Ability: 300sets 30days
Delivery Time: 35days(To be negotiated)
Packaging Details: 1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name: material mill circulating fan
Application: Cement Production Line,Dust-laden gas
Material: High-quality carbon steel/304/316, customizable
Air volume: 450000~900000m³/h
Air pressure: 10000~12000Pa
operating temperature: 70~100℃
Dust content: 80~120 g/Nm³
Voltage: 380V/415V/440V/660V/6KV/10KV
Size: Customized
Power source: Three Phase AC Motor
Bearing: SKF/FAG/By your demand
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Cement production raw material mill circulating fan

Cement Production Raw Material Mill Circulating Fan
This circulating fan is the core gas handling equipment in cement raw material grinding systems (such as air-swept mills and vertical roller mills). Its critical role is to drive the circulating flow of dust-laden hot gas (typically kiln exit gases) within the closed-loop system of grinding, drying, and classifying. Its primary functions include: providing the heat source for raw material drying, transporting ground material to the classifier for separation, and carrying the finished product meeting fineness requirements to the subsequent dust collection system. The fan operates continuously in a complex environment characterized by high dust concentration (up to 1000 g/Nm³), high humidity, medium temperature (~200°C), and abrasiveness.

Key Features
  • Backward-curved blades for high efficiency and energy savings

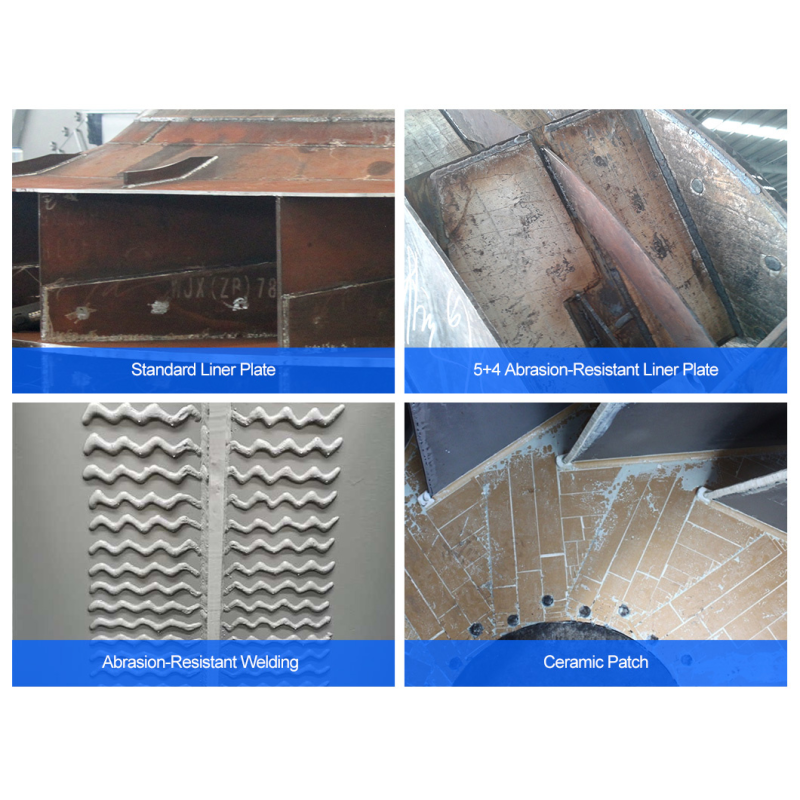

  • Blades with wear-resistant overlay or wear-resistant lining
  • Wear-resistant plate lining inside the casing
  • High-temperature extended support structure design to accommodate thermal expansion effects

Technical Specifications
Typical Performance ParametersConveyed MediumStructural Type
Air volume: 450,000–900,000 m³/h
Air pressure: 10,000–12,000 Pa
Operating temperature: 70–100°C
Dust content: 80–120 g/Nm³
Dust-laden gasDouble-support centrifugal type
Manufacturing Process
Manufacturing process of high-temperature industrial centrifugal fan showing production stages
Application Examples
Industrial application of gas booster fan in metallurgical plant installation
Company Profile
Manufacturing facility and company overview showing production capabilities Quality control and testing facilities for industrial fans
