cement process kiln tail exhaust fan

Categories Cement Fan
Brand Name: SIMO BLOWER
Model Number: 4-10
Certification: CE/ISO9001/ISO45001
Place of Origin: CHINA
MOQ: 1
Price: $500-1000
Payment Terms: L/C, T/T, D/P
Supply Ability: 300sets 30days
Delivery Time: 35days(To be negotiated)
Packaging Details: 1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name: kiln tail exhaust fan
Application: Cement Production Line,Purifies flue gas
Material: High-quality carbon steel/304/316, customizable
Air volume: 550000~900000m³/h
Air pressure: 2000~4000Pa
operating temperature: 80~180℃
Voltage: 380V/415V/440V/660V/6KV/10KV
Size: Customized
Power source: Three Phase AC Motor
Bearing: SKF/FAG/By your demand
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

cement process kiln tail exhaust fan

Cement Process Kiln Tail Exhaust Fan

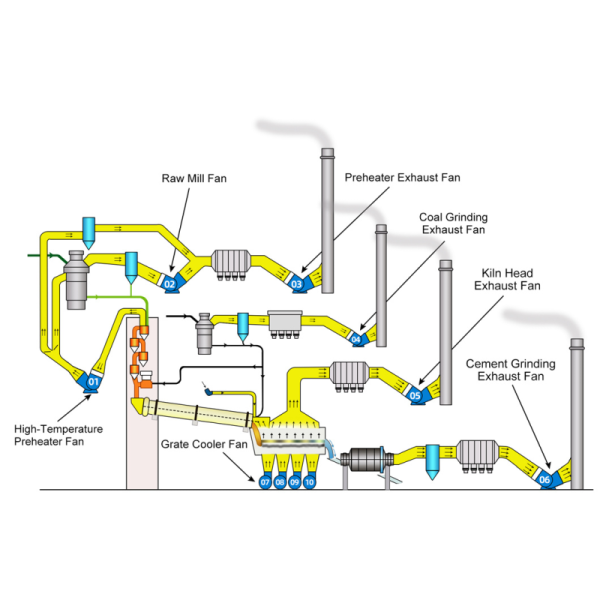

The Cement Kiln Tail Exhaust Fan is the core driving force and key control equipment in the preheater and calciner system of a modern dry-process cement production line. Installed after the outlet of the kiln-end preheater (C1 cyclone), it undertakes two primary critical tasks:

  • Establish and maintain a stable negative pressure throughout the entire preheater, calciner, and rotary kiln system, ensuring high-temperature flue gas flows along the intended path and providing the driving force for raw meal preheating and calcination
  • Efficiently and stably convey the cooled exhaust gas (typically 280-350°C) after heat exchange to subsequent systems such as waste heat recovery (SP boiler) or gas treatment (dust removal, denitrification)

Its performance directly determines the system's air balance, thermal efficiency, production stability, and environmental emission indicators.

Key Features
Technical diagram of backward-curved blade design for cement kiln exhaust fan
  • Backward-curved blades for high efficiency and energy savings
  • Dust-resistant design that prevents accumulation
  • Wear-resistant construction for extended service life
  • Reasonably segmented casing for easy maintenance access
Technical Specifications
Typical Performance ParametersConveyed MediumStructural Type
Air volume: 550,000~900,000 m³/h
Air pressure: 2,000~4,000 Pa
Operating temperature: 80~180℃
Purifies flue gasDouble-support centrifugal type
Manufacturing Process

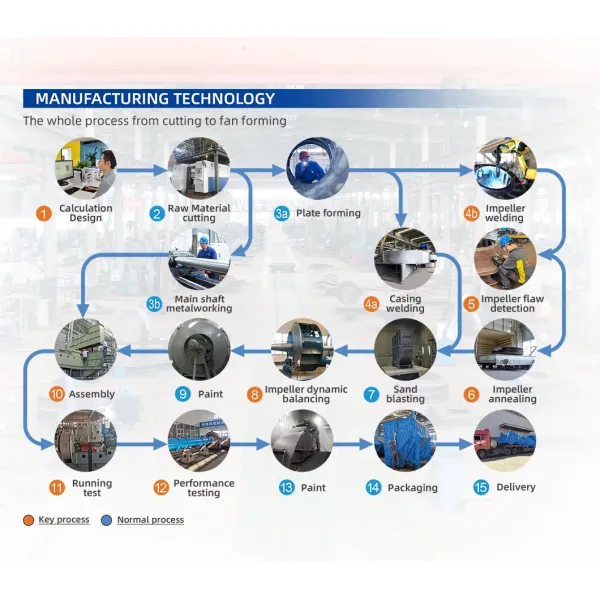

Manufacturing process of high-temperature industrial centrifugal fan showing production stages

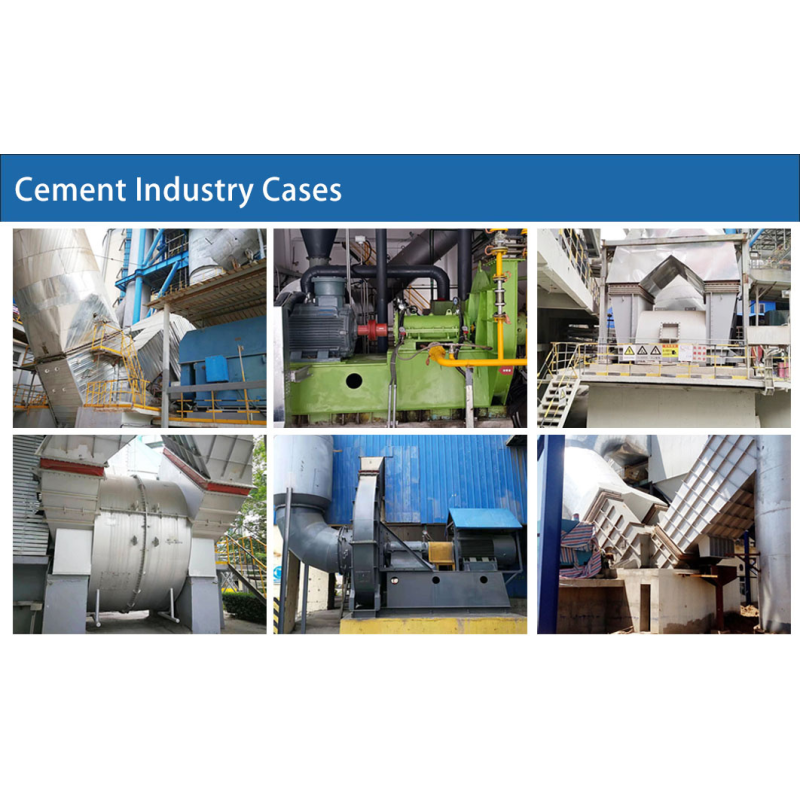

Application Examples
Industrial application of gas booster fan in metallurgical plant installation
Company Profile
Manufacturing facility and company overview showing production capabilities Quality control and testing facilities for industrial fan manufacturing

Related Projects
Frequently Asked Questions
FAQ and technical support information for cement process kiln exhaust fans
