4 Shaft Auto Slitting Machine Automatic PLC Plastic Film Slitting Machine

Automatic 4-shaft cutting machine ZRT-1300-G4
Basic Use

This machine is designed for slitting narrow-width adhesive tapes, including electrical tape, washi tape, masking tape, double-sided adhesive tape and other adhesive materials. Features: Four spindles perform slitting simultaneously to greatly boost production efficiency; each circular cutter can be adjusted independently.

Product characteristics
  1. Equipped with VECON PLC control system, supporting 12 working modes for cutting products of different widths. Users can freely select the starting and cutting end positions, with three adjustable cutter feeding speeds for slitting.
  2. Main spindle driven by a 5500W Shihlin frequency converter; circular cutter driven by a 3700W Shihlin frequency converter. The system will immediately halt upon alarm to prevent cutter breakage.
  3. Cross travel mechanism adopts HIWIN ball screw and linear guide, controlled by a 1000W Shihlin servo motor. Positioning tolerance within 1000mm travel: ±0.02mm.
  4. Cutter feeding unit fitted with HIWIN ball screw and linear guide, driven by a 1000W servo motor to guarantee stable feeding force and high cutting precision.
  5. Swing angle unit uses HIWIN ball screw with stepper motor control. Adjustable swing angle range: -9.5° ~ +9.5°.
  6. QBQ surface treatment applied to cutter base and cross travel components to improve hardness, wear resistance, corrosion resistance and anti-deformation performance.
  7. 10-inch main touch screen for simple and intuitive operation.
  8. Stainless steel diversion pipeline drainage system avoids silicone oil splashing during operation.
Main technical parameters
ModelZRT-1300-G4
paper core25/38/50/76=4strips
Customizable per customer requirements(interchangeable)available sizes: 25/38/50/76=4 sets
Cutting Width(Min.)(Max.)0.5-1300mm
Max. Cutting Material Diameter150mm(Max material thickness 45mm; maximum spindle diameter varies by spindle model)
Max. Circular Cutter Diameter180mm
HMI Touch Screen10-inch
power supply380V(customizable 220V) 50/60HZ/8.8KW
air pressure5KG
Machine sizeL2700 × W1100 × H1500 mm
Net Weight2T

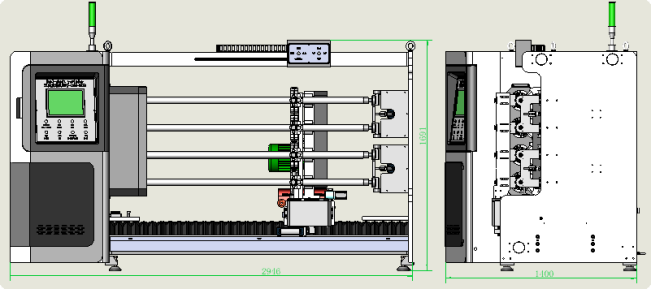

Equipment Layout:
Configuration parameters
ItemSpecification Configuration
ModelZRT-1300-G4
Main Touch Screen10-inch
Frame Wall Platethickness 28 mm
PLC ControllerVECON
Main Spindle MotorThree-phase asynchronous motor/KETEMAI brand
Main Spindle Drive5500W Shihlin Frequency Inverter
Circular Cutter MotorThree-phase asynchronous motor/MODOLI brand
Circular Cutter Drive3700W Shihlin Frequency Inverter
Cross Travel Servo MotorShihlin Servo Motor
Cross Travel Servo DriverShihlin Servo Driver
Cutter Feed Servo MotorShihlin Servo Motor
Cutter Feed Servo DriverShihlin Servo Driver
Swing Angle Stepper MotorDomestic brand
High-Speed Steel CutterSANSHI brand
Accessory parameters
Accessory NameBrand / Specification
Air Circuit BreakerCHINT
Switching Power SupplyTEND (Taiwan)
Photoelectric SensorDomestic brand
Proximity SwitchDomestic brand
AC ContactorCHINT
RelayOMRON
Push Button SwitchDomestic brand
Cutter Feed Ball ScrewHIWIN
Cross Travel Ball ScrewHIWIN
Swing Angle Ball ScrewHIWIN
Cutter Feed Linear GuideHIWIN
Cross Travel Linear GuideHIWIN
Solenoid ValveDomestic brand
Air CylinderDomestic brand
Linear Guide RailHIWIN
Magnetic SwitchDomestic brand
Main Spindle (4 pcs)Custom-made
BearingNSK
Machine FrameImported baking paint finish
Circular Cutters (Single-sided / Double-sided, high-speed steel / tungsten steel)4 pcs (selected according to processing materials)
Tool Kit1 set
Dial Indicator1 set
Cutter Alignment Rod1 pc
PE Tubing4 pcs
