Six Axis Automatic Cutter Machine PLC Touch Screen Masking Tape Slitting Machine Full Tension Control

Categories Automatic Slitting Machine
Payment Terms: T/T
Model Number: ZRT-1300-G6
Maximum cutting diameter: 180mm
Place of Origin: CHINA
Power supply: 380V(Customizable 220V) 50/60HZ/15KW
Price: Negotiable
Net Weight: 3.5T
Spindle servo motor: 5000W HCFA
Delivery Time: 15-30 working days
MOQ: 1 set
Brand Name: ZHIROBO
Packaging Details: Wooden Case
Cutting width: 0.5-1300mm
Machine size: L3200mm*W2000mm*H2000mm
Certification: VERIFICATION OF CONFORMITY
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Six Axis Automatic Cutter Machine PLC Touch Screen Masking Tape Slitting Machine Full Tension Control

Six-axis Automatic Cutting Machine with PLC Touch Screen and Fully-automatic Tension Control
Product Overview

This advanced six-axis automatic cutting machine is designed for precision slitting of various materials including electrician's tape, electronic film, grid tape, PE, TPU, PET, kraft paper, paper tape, BOPP, adhesive tape, acrylic, double-sided tape, and masking tape.

Main Technical Parameters
ParameterSpecification
Name/ModelZRT-1300-G6
Paper CoreCustomized (25/32/38/50/76=6 strips)
Cutting Width0.5-1300mm
Maximum Cutting Diameter180mm (varies with material thickness)
Maximum Shearing Blade Diameter200mm
Dual-screen Control15 inches + 7 inches
Power Supply380V (Customizable 220V) 50/60HZ/15KW
Air Pressure5KG
Machine SizeL3200mm × W2000mm × H2000mm
Net Weight3.5T
Configuration Parameters
ComponentSpecification
ModelZRT-1300-G6
Main Touch Screen15 HCFA
Auxiliary Touch Screen7 inches HCFA
Rack Wall PanelThickness: 40mm
Motion ControllerHCFA
Spindle Servo Motor5000W HCFA
Spindle Servo Driver5000W HCFA
Circular Knife Servo Motor3000W HCFA
Circular Knife Drive3000W HCFA
Lateral Servo Motor1500W HCFA
Lateral Servo Driver1500W HCFA
Feed Servo Motor1500W HCFA
Feed Servo Drive1500W HCFA
Angle Positioning Servo400W HCFA
Angle Positioning Servo Drive400W HCFA
Rolling Servo1000W HCFA
Rolling Servo Driver1000W HCFA
Water Pump60W
Planetary ReducerSmetre
SlicerJU JIU
Air SwitchChint
Switching Power SupplyMingwei
Photoelectric SensorBOJKE
Proximity SwitchYangming
AC ContactorSchneider
RelayIDEA
Button SwitchSchneider
Three-color Warning LightTAYB
IlluminationLED
Feed ScrewHIWIN 3210
Horizontal Moving Screw RodHIWIN 3210
Adjustable Angle Screw RodHIWIN 1510
Cutting-in Guide RailHIWIN30
Lateral Guide RailHIWIN30
Operation Box Guide RailHIWIN15
Solenoid ValveAsicko
Air CylinderAIRTAC
Linear RailHIWIN
Magnet SwitchAIRTAC
Spindle 3 inches (6 pieces)DC53
BearingNSK
FuselageImported paint finish
Round Knife3 pieces (size determined by material) - maximum 200mm
Work-box1 set
Dial Gauge1 set
The Tool Post1 PCS
PE Pipe6 items
Key Equipment Advantages
HECO motion control system with 12 cutting modes for different product widths and three feed speeds
5000W servo-controlled main shaft and 3300W servo-controlled circular cutter with immediate stop safety feature
NSK 3210 lead screw and 30 guide rails for horizontal movement with ±0.02mm positional accuracy
Upper silver 3210 screw and 30 guide rails for feed mechanism ensuring strength and precision
400W servo-controlled swing angle with range of +9.5° to -9.5°
60W water pump cooling system with precise ball valve for silent operation
QBQ treatment for enhanced hardness, wear resistance, and corrosion resistance
Dual-screen operation with 15-inch main display and 7-inch auxiliary screen
Comprehensive machine lighting system
Stainless steel dry-wet separation knife box design
Stainless steel drainage system to prevent silicone oil spillage
1000W servo motor reversal structure with zero-error flipping
Simultaneous three-axis segmentation for improved efficiency
Pre-assembled tool rest compatible with products having main shaft core below 25mm

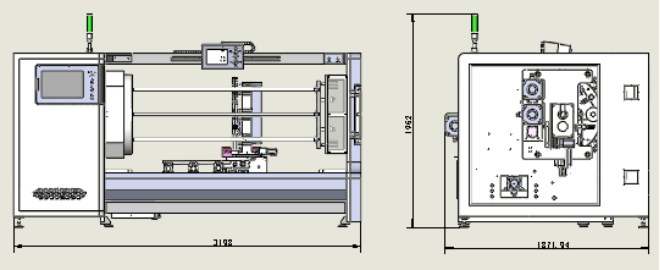

Equipment Layout
ZRT-1300-G6 Six-axis Automatic Cutting Machine equipment layout diagram ZRT-1300-G6 Six-axis Automatic Cutting Machine operational view
