80Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack

Categories Lithium Polymer Battery
Model Number: 80AH
Capacity: 80000mAh
Payment Terms: T/T
Supply Ability: In stock: 7 working days/Out of stock: about 30 working days
Brand Name: VATS Battery
Cycle life: 3000 Times
MOQ: 10
Delivery Time: 7 work days
Operating temperature: -20°C-60°C
Price: $34~36
Nominal voltage: 3.7V
Certification: UL1642//UL2054/CB/KC/PSE/CE/ROHS/UN38.3/MSDS
Dimensions: 12x125x365mm
Place of Origin: China
Discharge rate: 3C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

80Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack

80Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack
Product Overview

80Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack

Specifications
ItemDetails
ModelHZ12125365
Cell TypePolymer Lithium NCM Pouch Cell
Standard Voltage3.7V
Rated Capacity80Ah
Max Charge Voltage4.3V
Discharge Cut-off Voltage2.75V
Factory Shipping Voltage3.8V-4.1V
Standard Continuous Discharge Rate0.2C
Max Continuous Discharge Rate3C
10s Peak Discharge Rate6.5C
Charging Temperature Range0°C ~ 45°C
Discharging Temperature Range-20°C ~ 60°C
Single Cell Dimension12*125*365mm
Single Cell WeightApprox 1100g
Custom ServiceOEM & ODM Available
CertificationsISO9001, ISO14001, UN38.3, MSDS
Sample ServiceSample Supportable

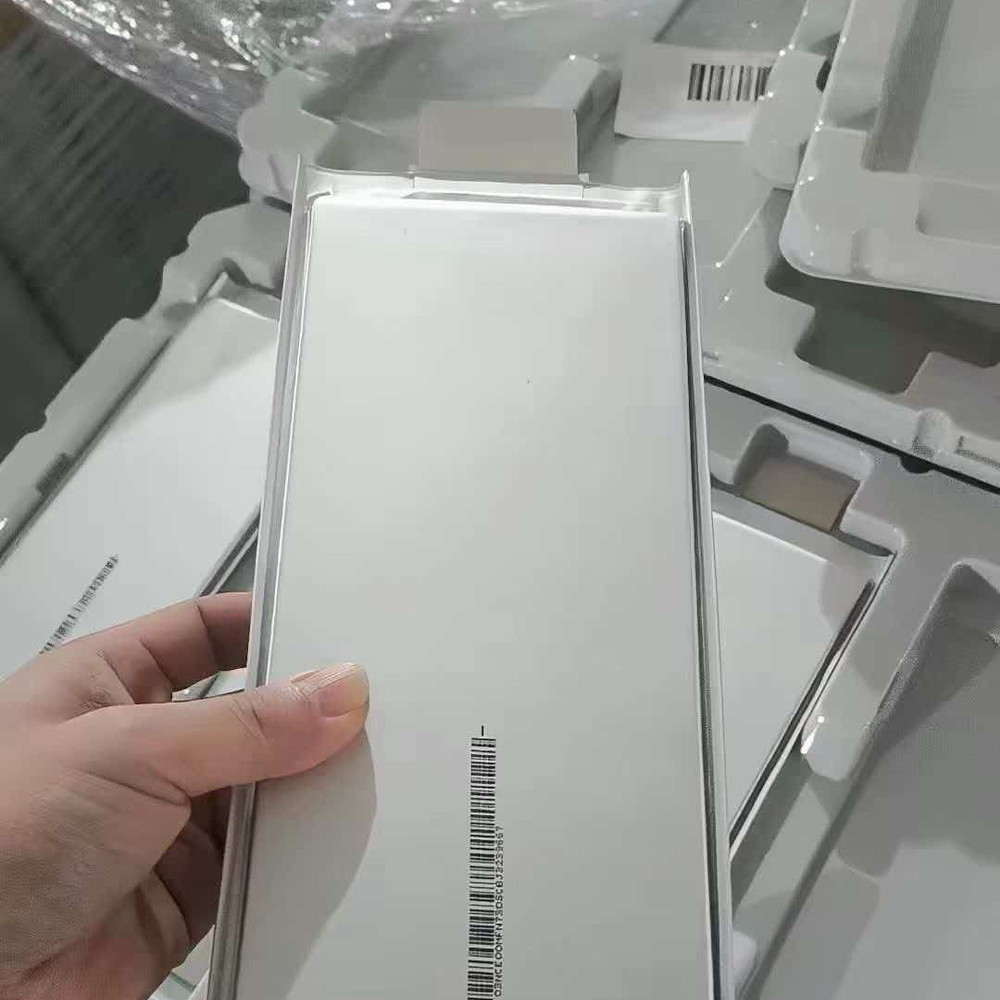

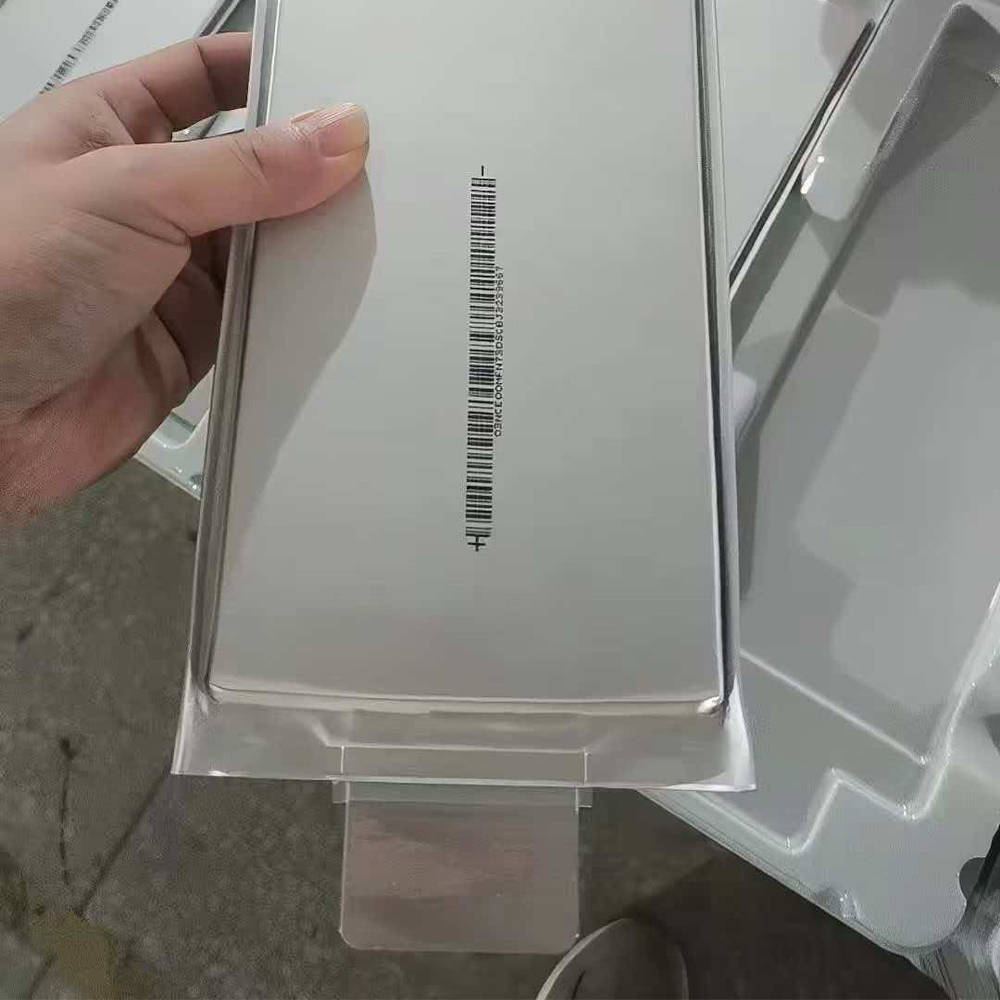

80Ah NCM Pouch EV Lithium Ion Battery Pack Close-up view of large format NCM pouch cell
Product Brief

This large format NCM pouch cell serves as a stable power battery pack for all kinds of electric devices. Our 80Ah EV pouch lithium ion cell delivers consistent high-rate discharge performance, works reliably under extreme hot and cold climates, and cuts your long-term power replacement costs for energy storage and electric vehicles.

Key Advantages
Wide Temperature Working Window

Unlike ordinary lithium cells limited to mild environments, this EV pouch lithium ion cell discharges normally from -20°C to 60°C. It runs smoothly for outdoor storage systems or off-road electric vehicles without power drop in winter or summer heat.

High Stable Discharge Performance

Support 3C constant discharge and 6.5C 10-second peak output, this power battery pack supplies steady heavy current for forklifts, drones and electric boats, avoiding sudden power loss under heavy loads.

Complete Global Safety Certifications

Comes with UN38.3, MSDS, ISO9001 and ISO14001 documents. The large format NCM pouch cell meets international shipping standards, so cross-border transport and local customs clearance will not be delayed.

Flexible Customization & Sample Trial

We accept OEM and ODM adjustments on voltage, capacity and size. Free sample support lets you test the EV pouch lithium ion cell's compatibility with your equipment before bulk orders, lowering your procurement risk.

Long Service Working Window

Separate safe charging and discharging temperature zones protect internal cell materials, slowing capacity decay and extending the service life of your power battery pack for long-term commercial use.

Applications

This reliable large format NCM pouch cell power battery pack fits most commercial and residential power scenarios:

  • Energy storage: Home solar storage, grid energy storage, portable power stations, telecom backup power, emergency power supply
  • Electric transport: Electric passenger cars, commercial trucks, e-scooters, golf carts, RVs, electric boats, mining EVs
  • Industrial equipment: Electric forklifts, AGV automated guided vehicles, construction machinery
  • Aerial devices: UAV drones, electric vertical takeoff aircraft
Frequently Asked Questions
What devices can this EV pouch lithium ion cell match?

This 80Ah power battery pack is compatible with solar storage systems, electric vehicles, industrial forklifts and drones. It supports customized assembly for your exclusive equipment models.

What is the safe charging temperature for the large format NCM pouch cell?

The suggested charging temperature stays between 0°C and 45°C. Do not charge the cell under sub-zero temperature to prevent permanent capacity loss.

Does this cell support high-current peak discharge?

Yes. It delivers 6.5C peak discharge within 10 seconds, ideal for devices that need instant strong power output.

Can I order customized specifications via OEM & ODM?

We fully support OEM and ODM modifications for this EV pouch lithium ion cell, including size, wiring and rated parameters to match your power battery pack project.

What certificates come with each batch of cells?

Every shipment includes ISO9001, ISO14001, UN38.3 and MSDS reports for smooth international logistics and local inspection.

Am I allowed to get samples for testing first?

Sample orders are supported for you to test the cell's performance and compatibility before placing large bulk purchases.

What is the cut-off discharge voltage to protect cell lifespan?

Stop discharge when voltage drops to 2.75V to avoid over-discharge damage to your large format NCM pouch cell.

What is the factory pre-charged shipping voltage?

All cells ship pre-charged at 3.8V-4.1V, complying with UN transport rules and ready for immediate assembly.

After-sales Guarantee
  • Full certified document provision: We supply complete ISO, UN38.3 and MSDS files for all bulk shipments to eliminate customs hold-up risks for your power battery pack orders.
  • Sample trial support: Test our EV pouch lithium ion cell performance before mass purchase to confirm fit for your project.
  • Flexible OEM & ODM service: Our engineering team adjusts large format NCM pouch cell specs to match your unique equipment requirements.
  • Professional technical support: Our English-speaking sales team answers parameter matching, assembly and shipping questions within 24 working hours.
  • Strict pre-shipment inspection: Every single cell undergoes voltage and capacity testing before packaging to reduce defective goods rate.
