76Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack

Categories Lithium Polymer Battery
Model Number: 76AH
Cycle life: 800 Times
Supply Ability: In stock: 7 working days/Out of stock: about 30 working days
Brand Name: VATS Battery

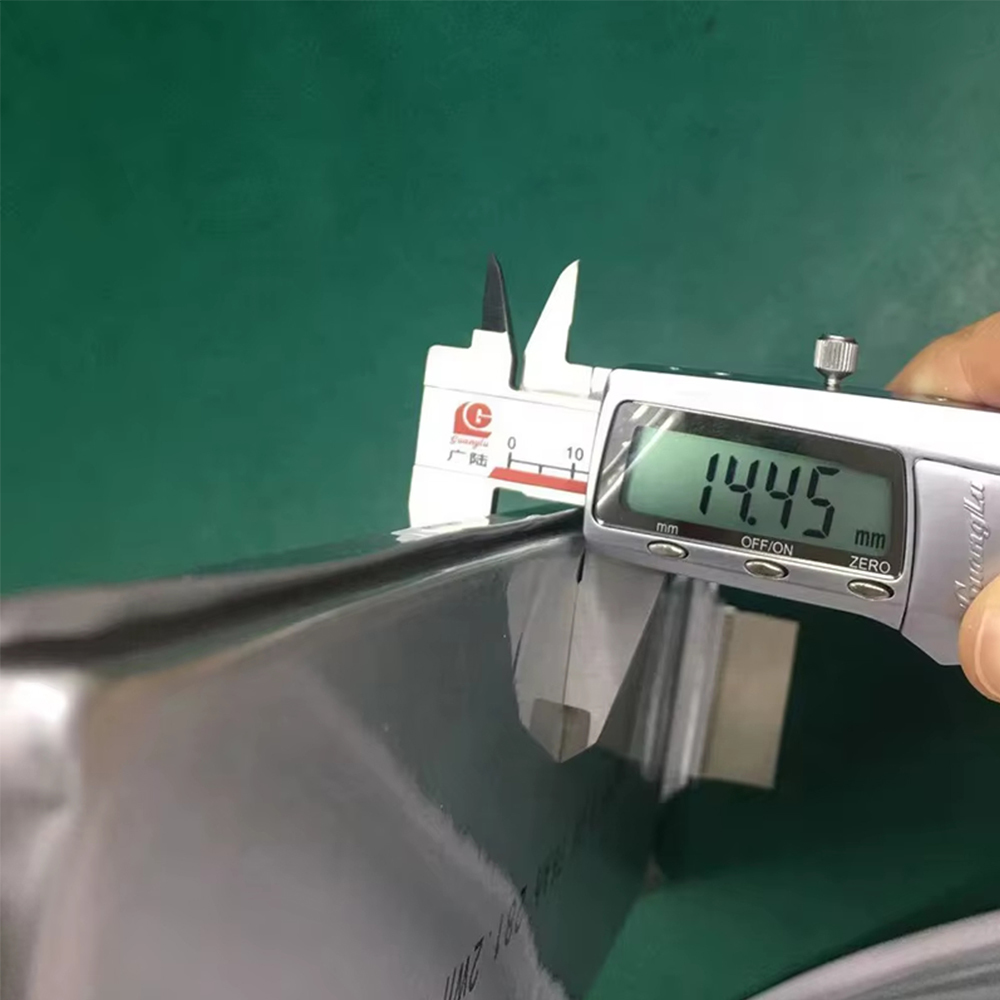

Dimensions: 15x106x295mm
Payment Terms: T/T
MOQ: 10
Delivery Time: 7 work days
Discharge rate: 3C
Place of Origin: China
Nominal voltage: 3.7V
Price: $16.65~24
Capacity: 76000mAh
Certification: UL1642//UL2054/CB/KC/PSE/CE/ROHS/UN38.3/MSDS
Operating temperature: -20°C-60°C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

76Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack

76Ah 3.7V Large Format NCM Pouch EV Lithium Ion Power Battery Pack
Product Specifications
ParameterValue
ModelHZ15106295
Cell TypePolymer Lithium Pouch Cell (NCM)
Standard Voltage3.7V
Rated Capacity76Ah
Max Charge Voltage4.3V
Discharge Cut-off Voltage2.75V
Factory Shipping Voltage3.8V-4.1V
Standard Continuous Discharge0.2C
Max Sustained Discharge3C
10s Peak Discharge Rate6.5C
Charging Temperature Range0°C ~ 45°C
Discharging Temperature Range-20°C ~ 60°C

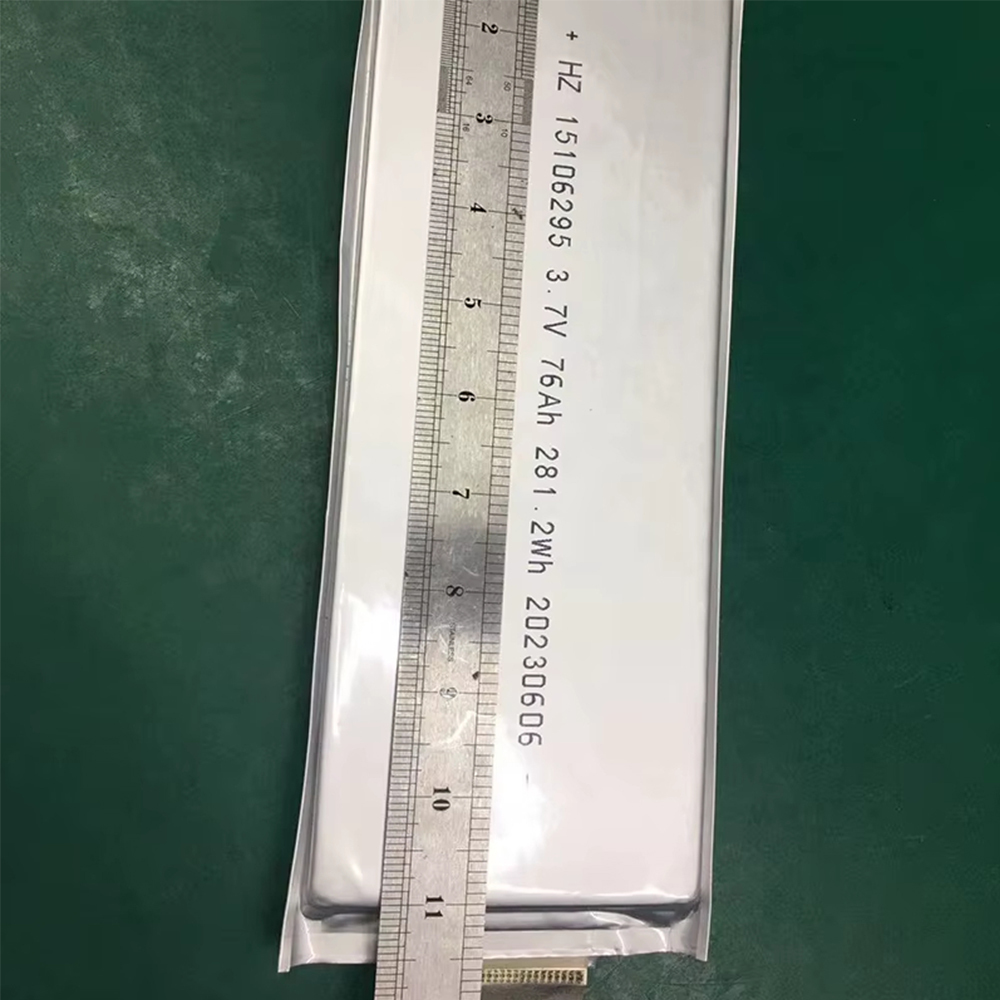

Single Cell Dimension15*106*295 mm
Single Cell Weight~815g
Custom ServiceOEM & ODM Available
CertificationsISO9001, ISO14001, UN38.3, MSDS
Sample SupportYes
Product Overview

This large format NCM pouch cell builds durable power battery pack solutions with stable 76Ah capacity. As a reliable EV pouch lithium ion cell, it delivers consistent power output for storage and electric vehicle applications.

Key Advantages
  • Wide High-Rate Discharge Performance: Supports 3C continuous discharge and 6.5C 10-second peak output. You get steady power bursts for heavy-load electric machines without voltage drop, ideal for high-demand mobile equipment.
  • All-Temperature Working Adaptability: Charges safely at 0°C-45°C and discharges normally from -20°C to 60°C. The EV pouch lithium ion cell works reliably in cold outdoor winters and hot industrial sites without performance decay.
  • Complete Global Safety Certifications: Comes with UN38.3, MSDS, ISO9001 and ISO14001 credentials. This large format NCM pouch cell power battery pack meets international shipping and industrial safety standards for cross-border transport.
  • Flexible Customization & Sample Access: We accept full OEM & ODM adjustments on size, voltage assembly and marking. Free sample support lets you test the pouch cell's performance before bulk order placement.
  • Large 76Ah Single-Cell Energy Storage: High-capacity single polymer cell cuts down assembly quantity for your battery pack projects. It reduces wiring complexity and lowers overall production costs for your energy storage systems.
Applications
  • Home solar battery storage & portable power stations for off-grid camping
  • Electric passenger cars, commercial trucks, scooters and golf carts
  • Grid energy storage & commercial stationary battery systems
  • Electric forklifts, AGV automated guided vehicles and construction machinery
  • UAV drones, eVTOL electric vertical takeoff aircraft and mining EVs
  • Electric boats, RV power systems and telecom emergency backup power supplies
Frequently Asked Questions
What devices can this 76Ah pouch cell power?
This large format NCM pouch cell power battery pack works for EVs, home solar storage, portable power stations and industrial mobile machines as a standard EV pouch lithium ion cell.
What is the maximum discharge load the cell can handle?
It runs stable at 3C continuous discharge and supports 6.5C peak discharge for 10 seconds to handle sudden heavy power demands.
Is this cell safe for ocean freight shipment?
Yes. It holds UN38.3 and MSDS certification to comply with global lithium battery transport regulations without extra customs barriers.
Can I get customized battery pack assemblies via OEM service?
Our team provides full OEM & ODM service to match your pack design, voltage series/parallel setup and label requirements. Sample testing is available before mass orders.
What temperature can this cell operate under?
Charge between 0°C and 45°C; discharge works steadily from -20°C up to 60°C for year-round outdoor and industrial use.
What cut-off voltage should I set for discharge?
Set your BMS cut-off voltage to 2.75V per single cell to extend the cycle lifespan of the EV pouch lithium ion cell.
What certification documents will be provided with bulk orders?
We supply ISO9001, ISO14001, UN38.3 test reports and MSDS documents for every shipment batch.
What is the factory pre-charged shipping voltage?
All cells ship pre-charged at 3.8V-4.1V, ready for direct assembly after receiving your goods.
After-sales Guarantee
  • Full Document Support: Complete certification files (UN38.3, MSDS, ISO series) are attached to every shipment to smooth customs clearance for global buyers.
  • Sample Trial Service: Low-cost sample orders are supported to verify the large format NCM pouch cell power battery pack's performance for your project before bulk purchase.
  • Customization Technical Team: Our engineering team provides free technical guidance for OEM & ODM pack design based on this EV pouch lithium ion cell.
  • Quality Inspection: Every single cell undergoes voltage and capacity testing before packaging to avoid defective goods delivery.
  • Responsive After-sale Support: Our dedicated business support team replies to technical and order inquiries within 24 working hours for global clients.
